Standing Seam Crimping Machine

Standing seam crimping machine is designed to be used with standing seam panel machine. Its function is to bend the standing seam panels into the desired curvature. It is widely used in the construction of roofs of large venues.

Send Inquiry

Product Description

Product Parameter

Item	Parameters
Material Thickness	0.7-1.2mm
Driving Motor	4kw
Hydraulic Station Power	2.2kw
Type Changing Motor	0.55KW
Curving Motor	2KW Servo Motor
Roller Material	Cr12# steel, heat-treated, hard chrome coated
Shaft Diameter	65mm
Crimping speed	15M/Min
Crimping Range	250MM-600MM

Features

·Strong and durable

Machine base made from 80*80 square tube. Machine wall thickness is 28mm. All rollers of this standing seam curving machine are well treated. The intermediate hydraulic rollers are made from CR12#, finely processed after heat treatment, and the guide rollers made from 45# steel, fine-processed and hard chrome coated on the surface.

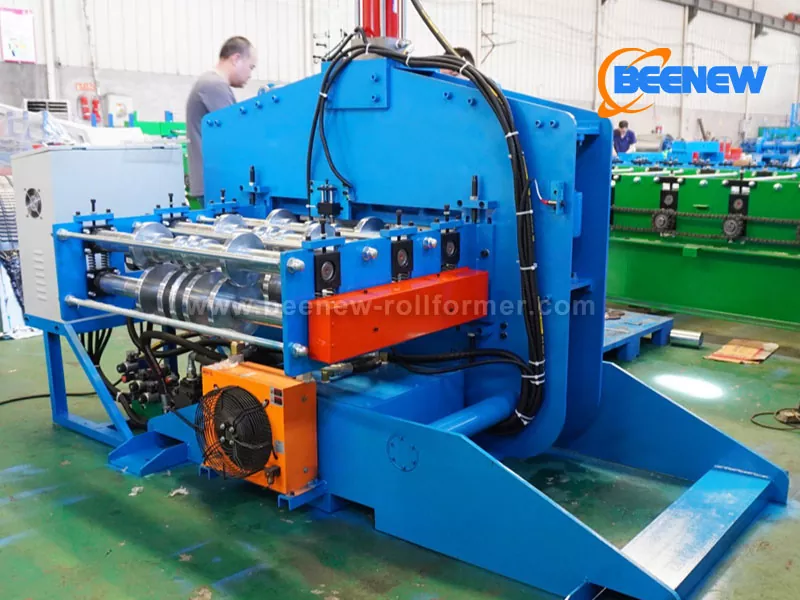

Standing Seam Curving Machine

·Highly practical

The main material for standing seam roof panel machine is aluminum-magnesium-manganese plate. This machine can form 0.7-1.2mm thickness material, and for 1.0 thickness, minimum radius for positive bending can reach 1.5 meters, minimum radius for reverse bending is 6 meters. For 0.8-0.9 thickness plate, minimum radius is 2.5 meters for positive bending, for reverse bending is 6 meters.

Positive and reverse arcs can be bent continuously for 20 times with different radii on the same plate.

Fan-shaped bending uses the method of bending separately up and down, and fan-shaped bending can also be bent continuously on the same plate

Crimping effect:

Standing Seam Crimping Machine

Project Cases

The standing seam crimping machine is widely used in construction industry, such as large exhibition halls, subway stations, stadiums, etc. The panels after crimping are practical and beautiful.
