Standing Seam Metal Roof Roll Former

This standing seam metal roof roll former can produce both straight standing seam metal roof and tapered shape roof, all roof length can tapered angle degree can be set on touch screen and then start to produce automatically.

Send Inquiry

Product Description

Beenew’s standing seam metal roof roll former is designed to produce high-quality tapered and snap lock roof panels with unparalleled precision. This machine boasts a robust feeding section equipped with precision guides, ensuring smooth and accurate material feed throughout the entire forming process.

Product Parameter

Items

Parameter

Steel Sheet Thickness

0.4-0.8mm

Forming Steps

16 steps

Roller Material

45# steel, coated with chrome

Driving Motor

5.5KW

Hydraulic Cutting Power

2.2KW

Effective Width

300-600mm

Power Supply

380V/50HZ/3Ph (can be specified by user)

Cutting Type

Hydraulic cutting, no slug cutting

Size changing motor

Size changing motor: 0.75KW

Material of Cutting Tool

Cr12

Control System

PLC with touch screen

Machine Dimension

5800*1250*1350mm

Machine Net Weight

2500Tons

Profile Design & Sample


Machine Features

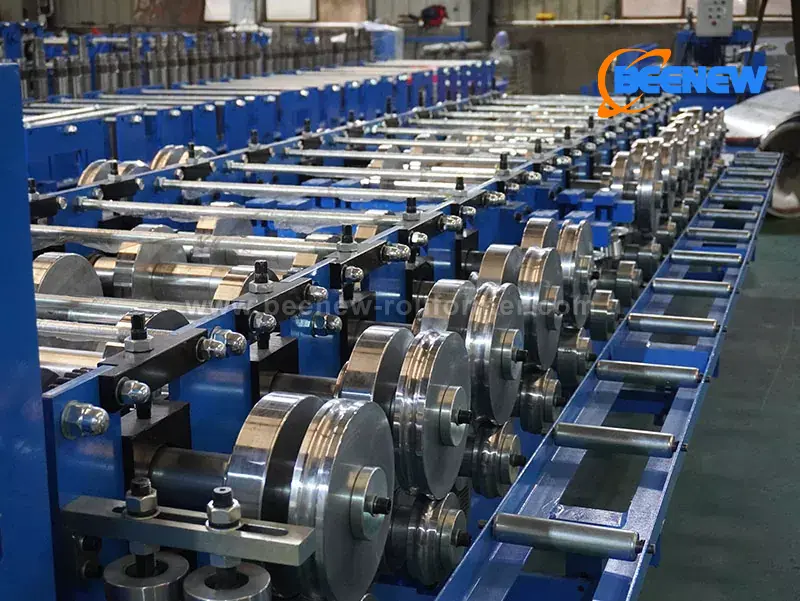

Whole standing seam metal roof roll former is with 18mm wall thickness, 14 stands roll forming and 2 stands for forming ribs. The line is driven by a combination of gears and sprockets, providing a reliable and efficient driving mechanism. The rollers, crafted from 45# steel and precision-machined on CNC lathes, are further enhanced with a hard chrome coating for maximum durability and wear resistance. Shaft diameter is ф60mm and all will be precision machined. Main driving motor is 5.5kw Simenz matches with frequency inverter for controlling producing speed, so our standing seam metal roof roll former line speed will be about 8-15m/min. This machine can produce many sizes between 300mm and 600mm effective width.


When it comes to forming tapered panels, the standing seam metal roof roll former excels. Due to the tapered nature of the panels, the machine is designed to roll form one side of the panel initially. Once completed, the operator manually takes the finished panel and feeds it back into the machine to form the other side. This process, though manual, ensures that even the most complex tapered shapes can be achieved with precision and ease.

So this standing seam metal roof roll former is a versatile and powerful machine that combines precision engineering with advanced technology to deliver high-quality tapered and snap lock roof panels. If you're looking for a snap lock roof panel machine, snap lock roofing machine, standing seam curving machine, or simply a stand and seam machine, inquiry us, we will give you correct machines you will need!

Product Application

Straight standing seam roof project

Tapered standing seam roof application

FAQ

1. How to install standing seam roof systems?

The simplified installation instructions for standing seam lock-side roof panels mainly include the following steps:


Preparation of Materials and Tools: Ensure the availability of necessary materials such as aluminum-magnesium-manganese panels, T-shaped aluminum alloy supports, and lock-side machines, as well as the required tools.

Installation Procedure Arrangement: Schedule the installation of the aluminum-magnesium-manganese panel roofing system at a suitable stage within the overall construction process, and strive to complete it continuously within an independent construction section.

Setting Out: Conduct setting out work before installation to ensure installation quality. Measure the existing support positions and dimensions on the installation surface, record any construction deviations, and propose corresponding installation measures to address the deviations.

Connection and Fixation: Firstly, connect the special aluminum alloy T-shaped clips to the support keels. Then, interlock the roof panels with the T-shaped clips. Finally, lock and shape them using mechanical or manual methods.

Safety Precautions: During installation, prioritize safety and abide by safety regulations, such as wearing appropriate protective gear, avoiding walking or working on unsecured roof panels, and establishing safe access routes.

Additionally, the installation of standing seam lock-side roof panels involves special applications, such as the installation of arched roofs and pointed roof covers, which are particularly suitable for long-slope roofs without the need for overlapping. This roof panel type can undergo special processing, allowing for flexibility in the fixing seats, thus making it ideal for long-slope roofs.


2. Can you provide standing seam roof curving machine together?

Re: Yes, we can, we can custom manufacture curving machine according to your standing seam roof design.
