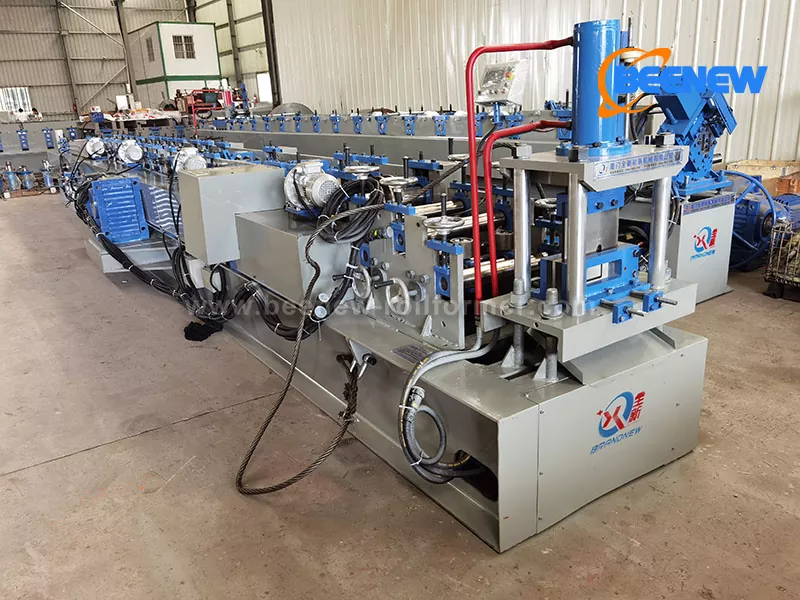

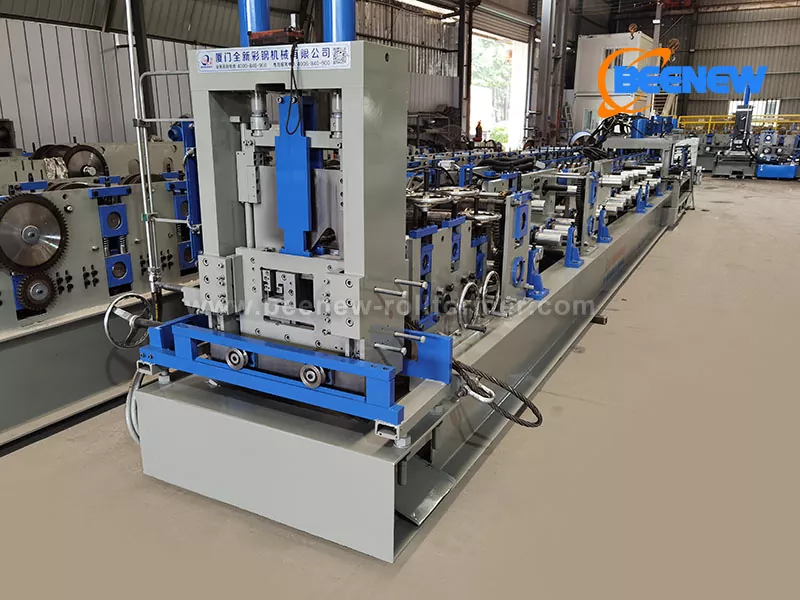

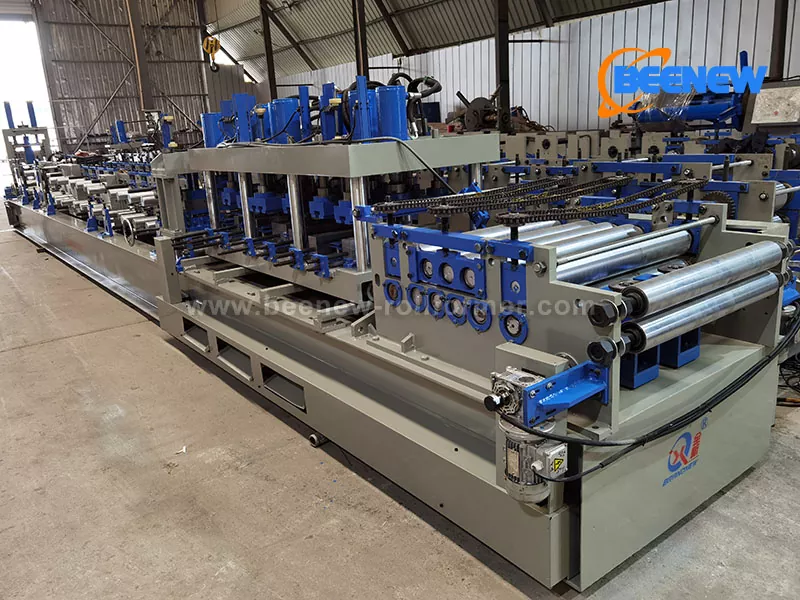

CZ Purlin Machine

Beenew Machinery is one of China's largest manufacturers of CZ purlin interchangeable forming machines and one of the earliest suppliers of fully automatic CZ purlin forming machines in the country. Over the past 10 years, the company has delivered an average of 160-200 of these roll forming machines annually.

Parameters

Roll thickness: 1.5-3mm

Maximum forming speed: 30m/min

Number of rollers: 20

Main motor | Hydraulic motor: 37Kw

Spindle diameter: Ø 100/85mm

Cutting method: Hydraulic cutting

Tool material: Cr12Mov

Punching device: 3 sets

Control system: PLC

Size adjustment method: PLC control/button operation

Standard forming specifications (customization supported)

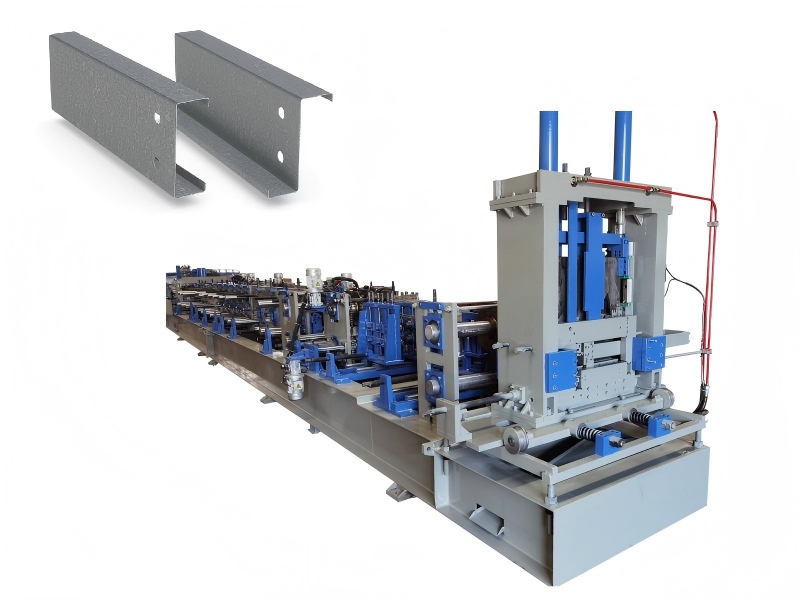

The equipment can produce two types of purlins, C and Z. The dimensional parameters are fixed within a range, and the thickness is 1.5-3mm for both. Specifically:

C purlins: A=100-300mm, B=50-80mm, C=10-20mm;

Z purlins: A=140-300mm, B=50-80mm, C=10-20mm.

Machine with stepless post cutting device allows for seamless cutting of various purlin models without any limitations, ensuring maximum flexibility and efficiency in your operations. No need for complex manual adjustments.

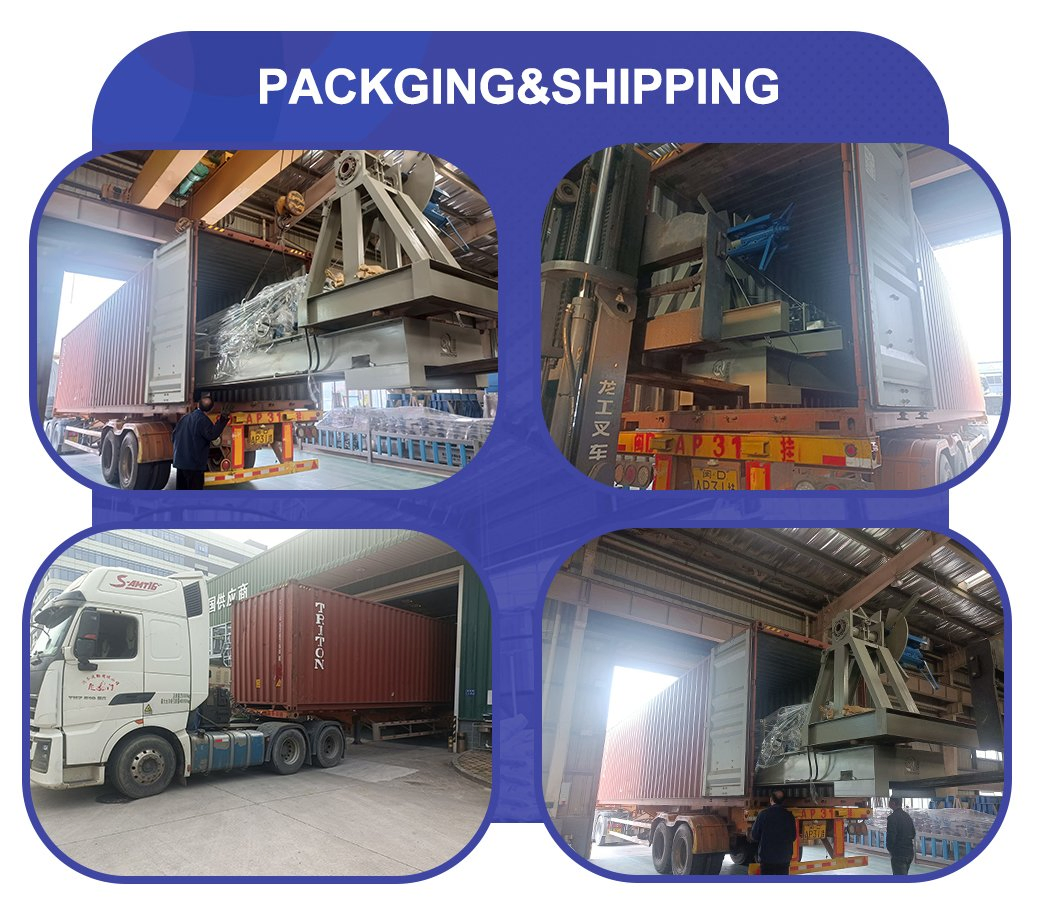

Packaging & Shipping

Beenew roll forming machine is packaged with export standards. A thick layer of waterproof plastic film is wound around the machine to prevent water from corroding the surface during transportation, avoid scratches on the paint, and prevent the machine from getting dusty.

After loading the rolling forming machine into the container, we will use high-strength steel wire ropes to tighten and secure the machine, preventing it from moving or colliding during sea and land transportation, and ensuring that the machine arrives at the customer's factory are good.

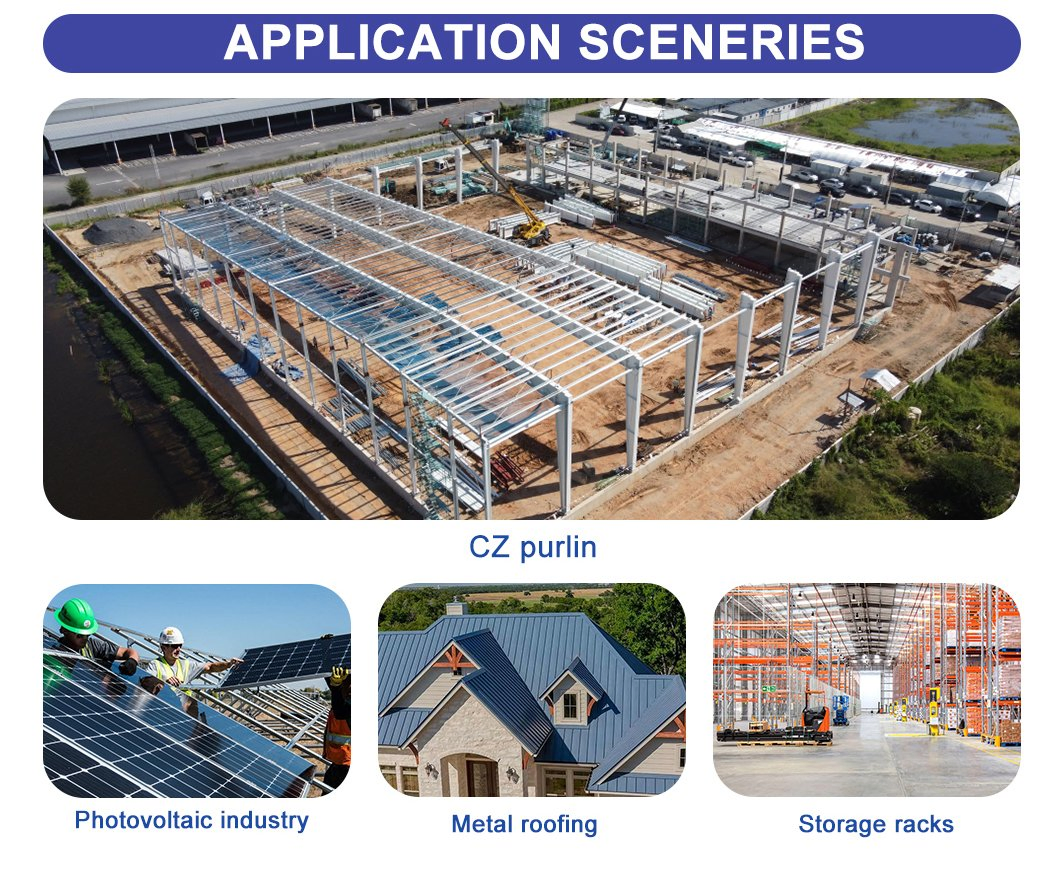

Application scenery

Steel purlin is a cold-formed and galvanized secondary load-bearing structural component. Z-profile beams are mainly used for large-span continuous roofs. The joint structure of these beams offers better load-bearing performance and smaller deflection. The C-shaped purlins are used for roof and wall beams of relatively small spans, as well as various auxiliary supports.
