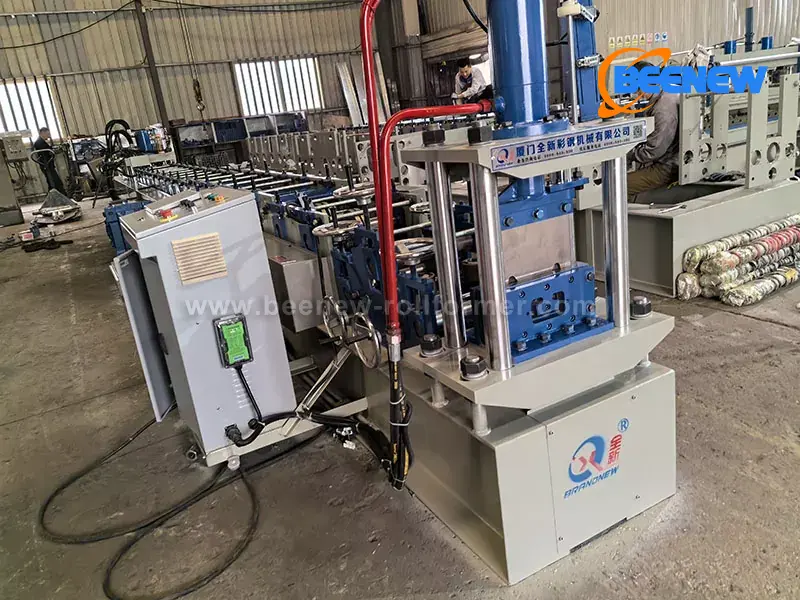

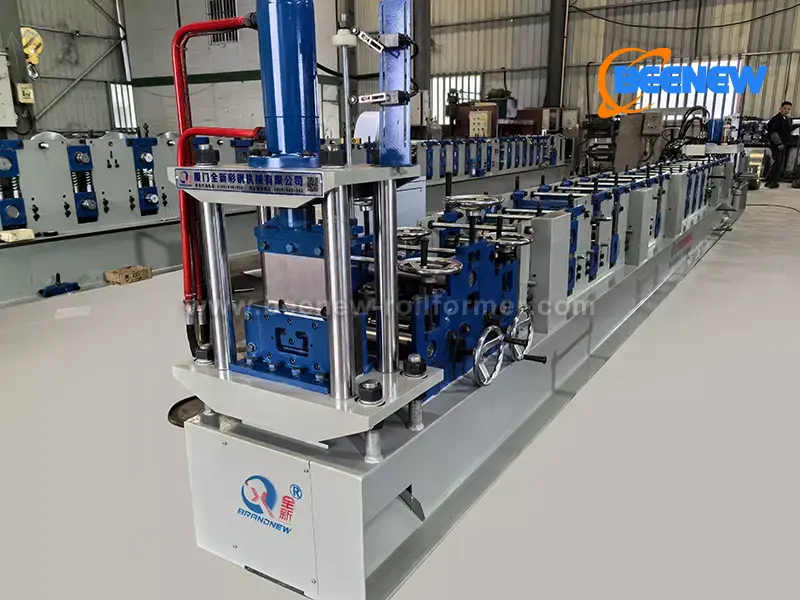

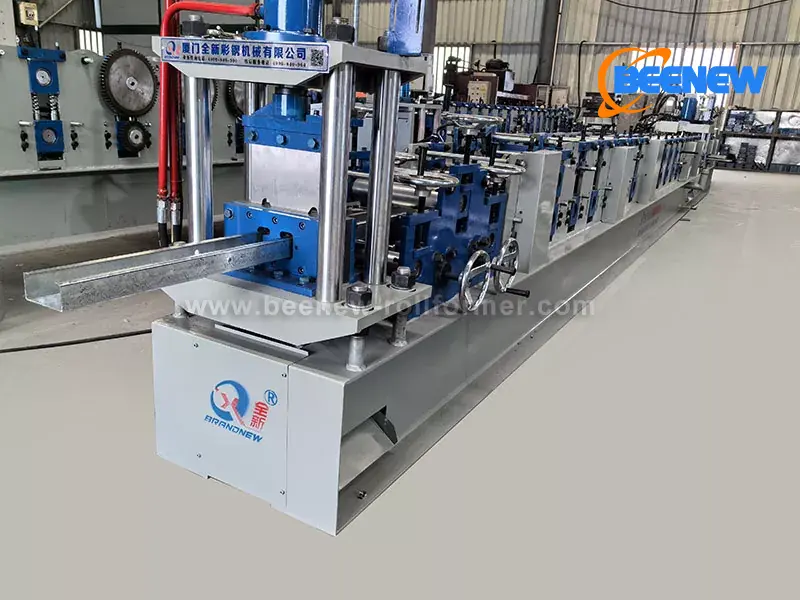

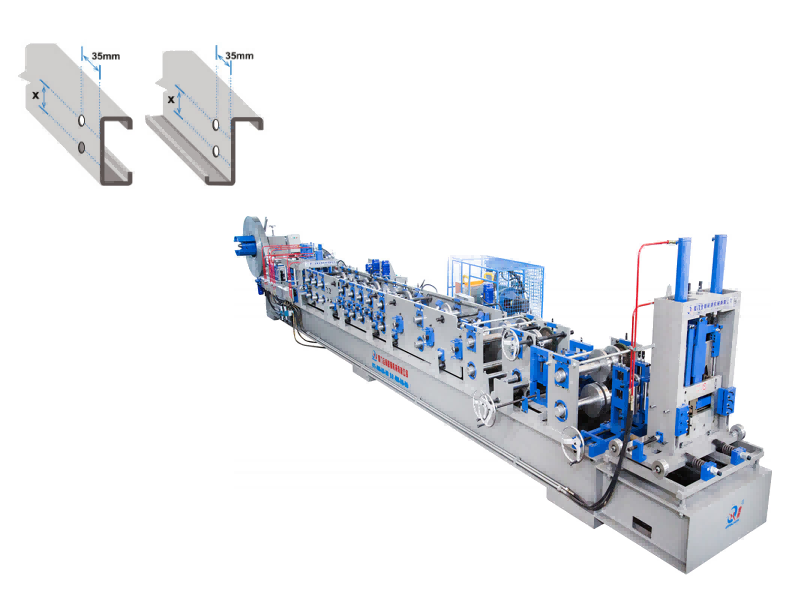

C Purlin Machine

C purlin machine is specialized equipment used in the manufacturing of C-shaped steel sections, known as purlins, which are essential components in the construction industry. And this machine can deal with different steel thicknesses and lengths, making them suitable for both residential and commercial constructions.

Send Inquiry

Product Description

C-shaped steel purlin machine

information：

1. Estimated price: Approximately US$20,000;

2. Core uses: Professionally produces C-shaped steel, mainly used in steel structure purlins, wall beams, etc. It boasts high production speed and can produce C-shaped steel products of various specifications;

3. Customization capabilities: Profile styles can be designed according to customer needs. It also supports PLC control, achieving fully automatic size switching from 100mm to 300mm specifications within 1 minute.

Application areas

1. Construction industry: Can be used as wall supports, beams, roof trusses, columns, brackets, steel structures, and other structural components;

2. Decoration engineering: Used in the production of door and window frames, railings, billboards, etc. in the architectural decoration field.

Main components of the machine: Consists of a passive loading rack, leveling device, punching device, post-forming cutting device, hydraulic station, computer control system, and other core components.

Advantages/Features

1. Equipped with a servo tracking shearing system for higher cutting precision;

2. Utilizes a snap-fit design to ensure more standard C-shaped steel angles without scratching the sheet material surface;

3. Equipped with a PLC fully automatic computer control system for intelligent management of production information;

4. Convenient equipment maintenance, simple operation, upkeep, and mechanical debugging processes, and easy mold replacement.

Parameters

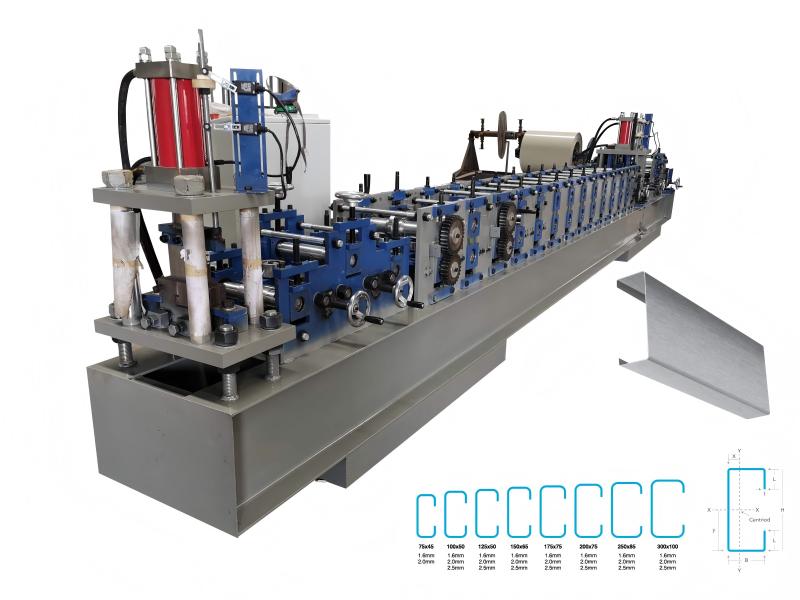

Below are the parameters for Beenew C70-250 purlin rolling machine with servo motor:

Item	Parameters
Bottom Width	C70-250mm
Purlin Height	C25-70mm
Material Thickness	Q235(1.3-2.5mm)
Feeding Width	125-422mm
Transmission Motor	15KW servo motor
Punch & Cut Motor	5.5KW
Type Changing Mode	Computer control
Shaft Diameter	Forming: ф70/55mm leveling: ф86mm
Roller Material	GCR15 bearing steel /Cr12 die steel
Speed Control Mode	Servo drive speed control
Forming Station	13 stations
Cutting/Punching Mode	Pre-cutting and punching
Cutting Length Precision	±2mm

FAQ

1. What is a purlin in fabrication work?

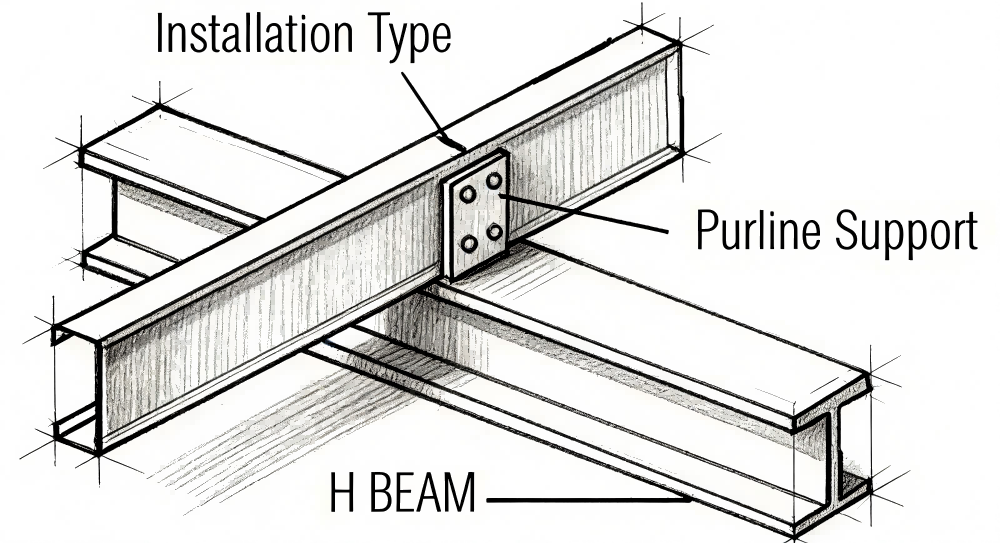

Purlins are important components in steel structure buildings, mainly used to support roof panels and distribute roof loads.

2. What are purlins made of?

Purlins should be made of hot dipped galvanized steel strip. Anti-corrosion treatment is of great significance to prolong the service life of purlins. Hot-dip galvanizing, high weather-resistant coating and other methods are usually used for anti-corrosion treatment.

3. What are the main types of steel purlins?

The common steel purlins include C-shaped steel purlins and Z-shaped steel purlins, each of which has different characteristics and applicable scenarios. C-shaped steel purlins are characterized by thin walls, lightweight, excellent section performance, and high strength. Z-shaped steel purlins are particularly suitable for purlins on large slope roofs, and can make full use of their bending resistance.
