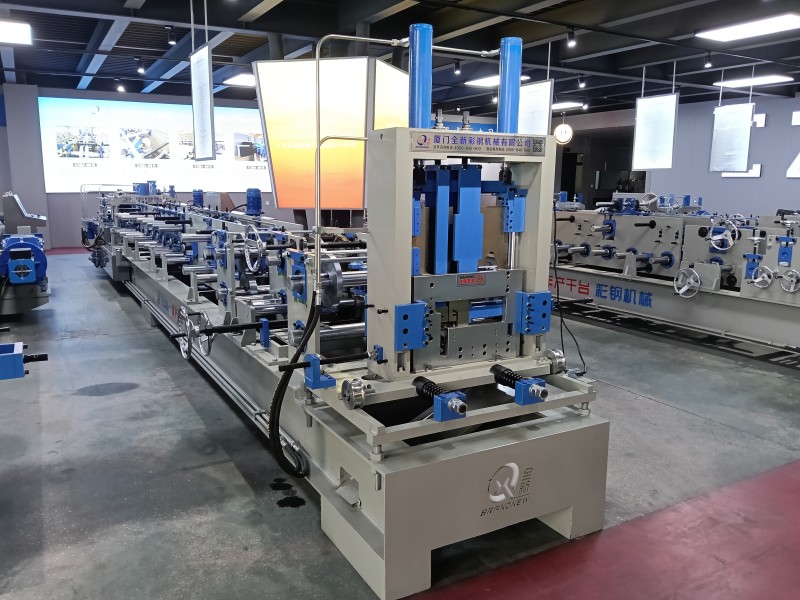

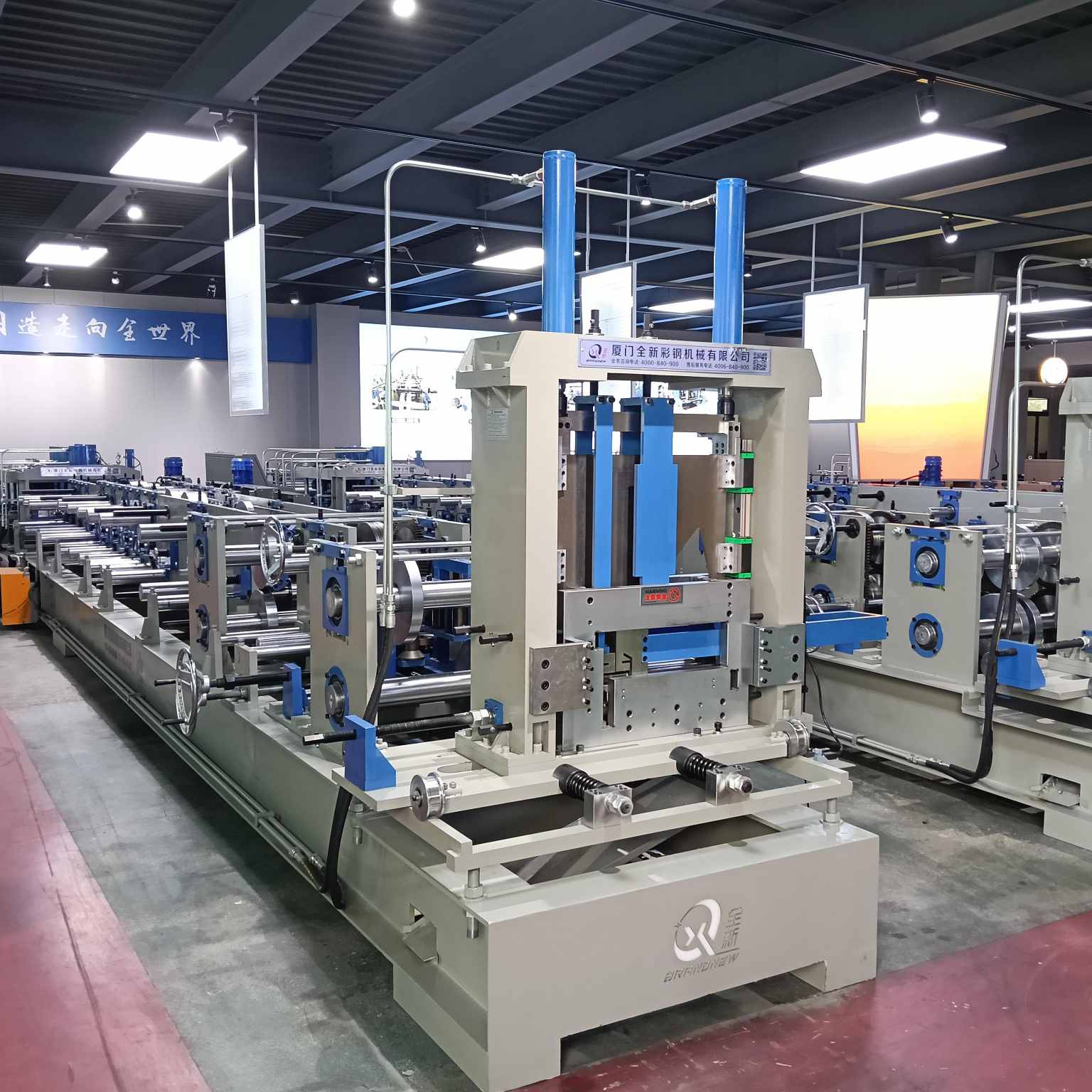

Steel stud roll forming machine

Steel Stud Roll Forming Machine

Beenew metal stud roll forming machine is fully automatic cold roll forming production line, for manufacturing standard light gauge steel drywall framing profiles, including C-shaped vertical steel studs and U-shaped top and bottom tracks.

This forming machine continuously processes pre-galvanized and hot-dip galvanized steel coils into stud profile,used for drywall and light guage steel building.

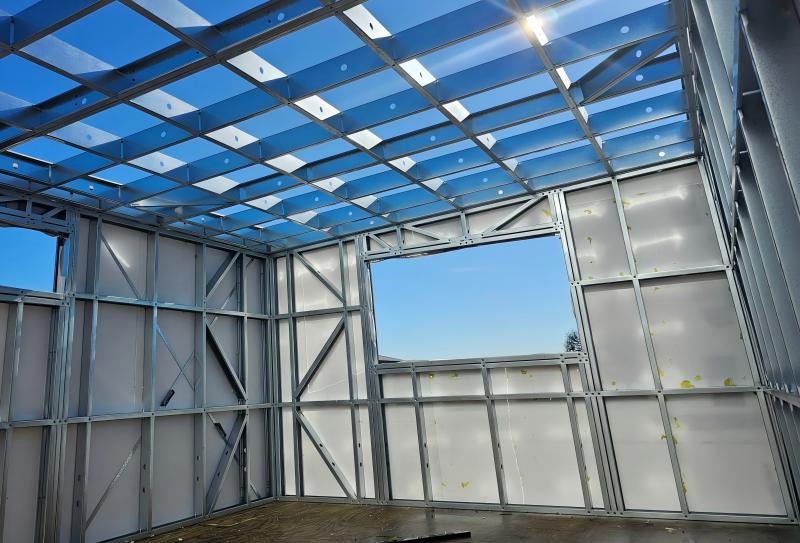

The finished light steel keels are widely applied in interior partition walls, ceiling framing, non-load-bearing wall systems, room separation structures and light steel villa interior frameworks, fully meeting the large-scale production demands of global drywall construction material manufacturers.

Beenew machinery has 29 years experience for roll forming machine R&D, manufacturing and global export, our enginner has upgraded and optimized this automatic drywall stud production line.

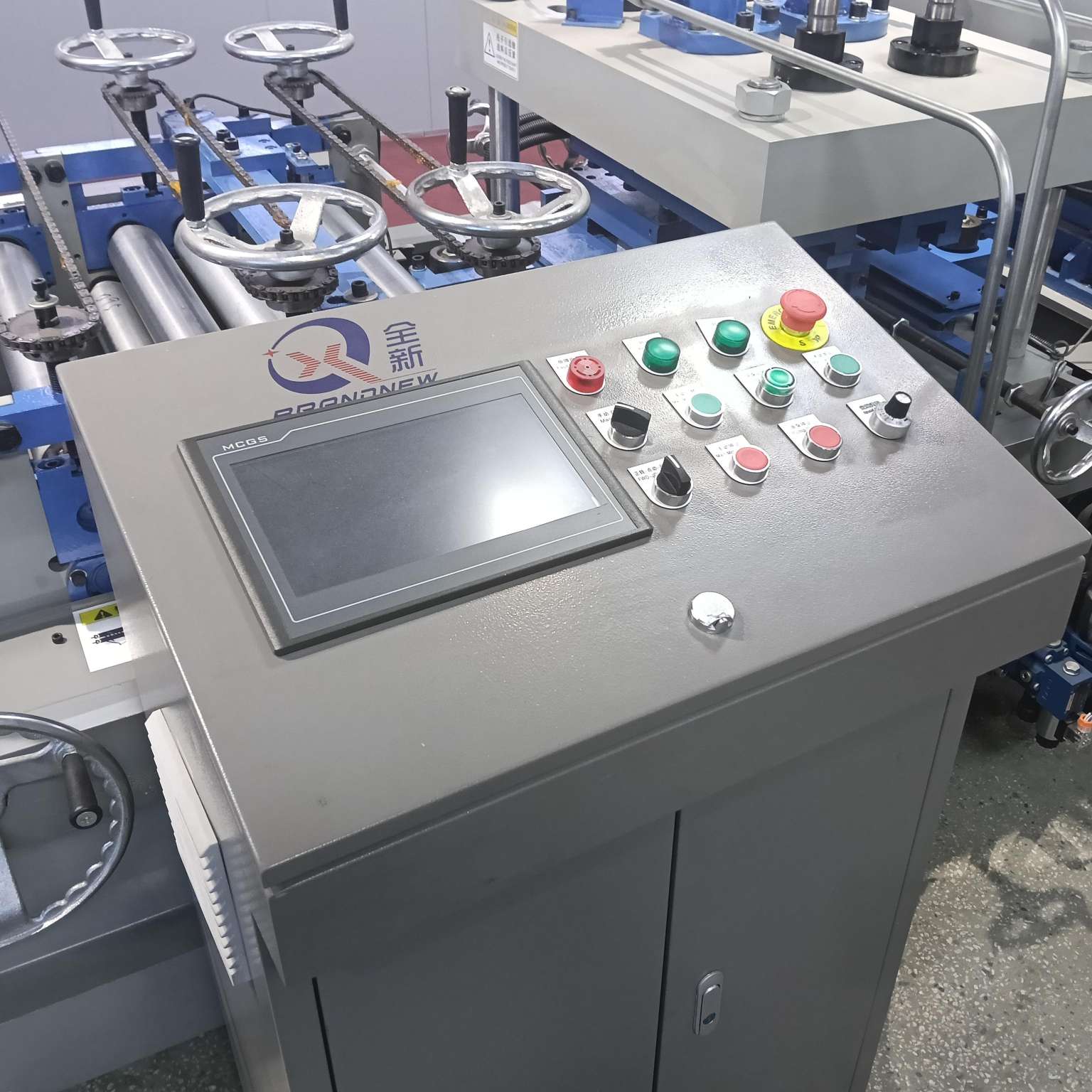

The machine use high-hardness roller, high-precision servo systems, stable hydraulic punching units and intelligent PLC control systems.

Beenew steel stud machine can produce flat profile, accurate punching, stable operation .

The machine design and production processes strictly comply with international construction standards, conforming to CE certification and ISO9001 quality management requirements.

Xiamen Beenew Machinery providing stable, high-performance light steel framing machine solutions for worldwide building material processing factory.

Steel stud and track framing is for drywall construction and interior decoration projects, is for all non-load-bearing interior wall and ceiling.

Steel Stud (C-channel) is vertical load-bearing framing,has pre-punched holes for wire routing and sound insulation filling. It is the main vertical support for interior partition walls.

Steel Track (U-channel) is horizontal top and bottom groove profiles fixed on floors and ceilings, used to lock and straighten all vertical studs to ensure overall wall stability and flatness.

Steel stud and track profiles is different from structural C/Z steel purlins,CZ purlins are heavy-gauge used for load-bearing factory roofing and exterior wall structures, stud and track profiles are light-gauge, non-load-bearing interior drywall framing components.

The stud and track has thin wall thickness, smooth galvanized surface, excellent anti-rust performance, reliable fireproof capability and simple on-site assembly, these lightweight steel keels have completely replaced traditional wooden frames, becoming the mainstream interior building material for global commercial and residential construction.

Machine working Process

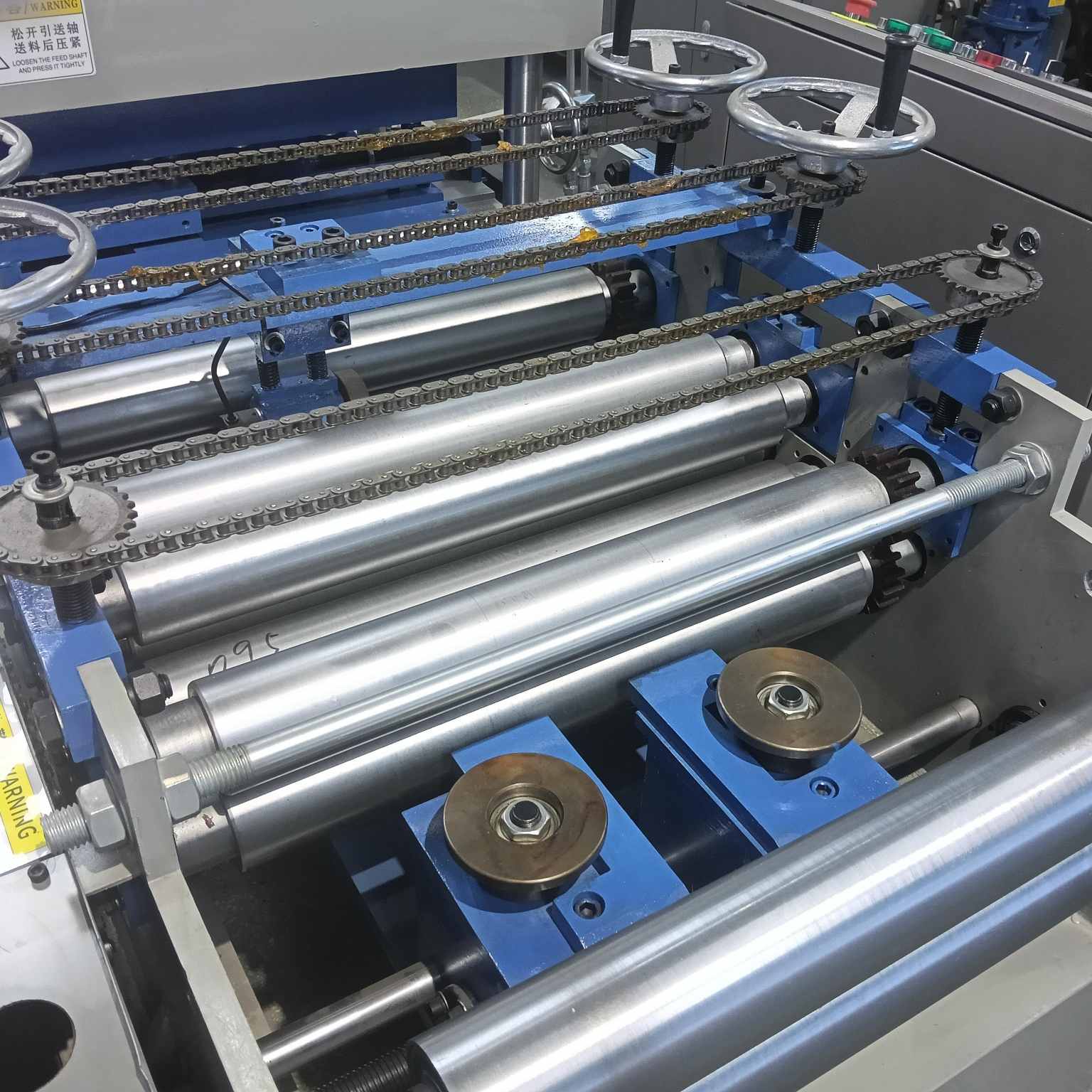

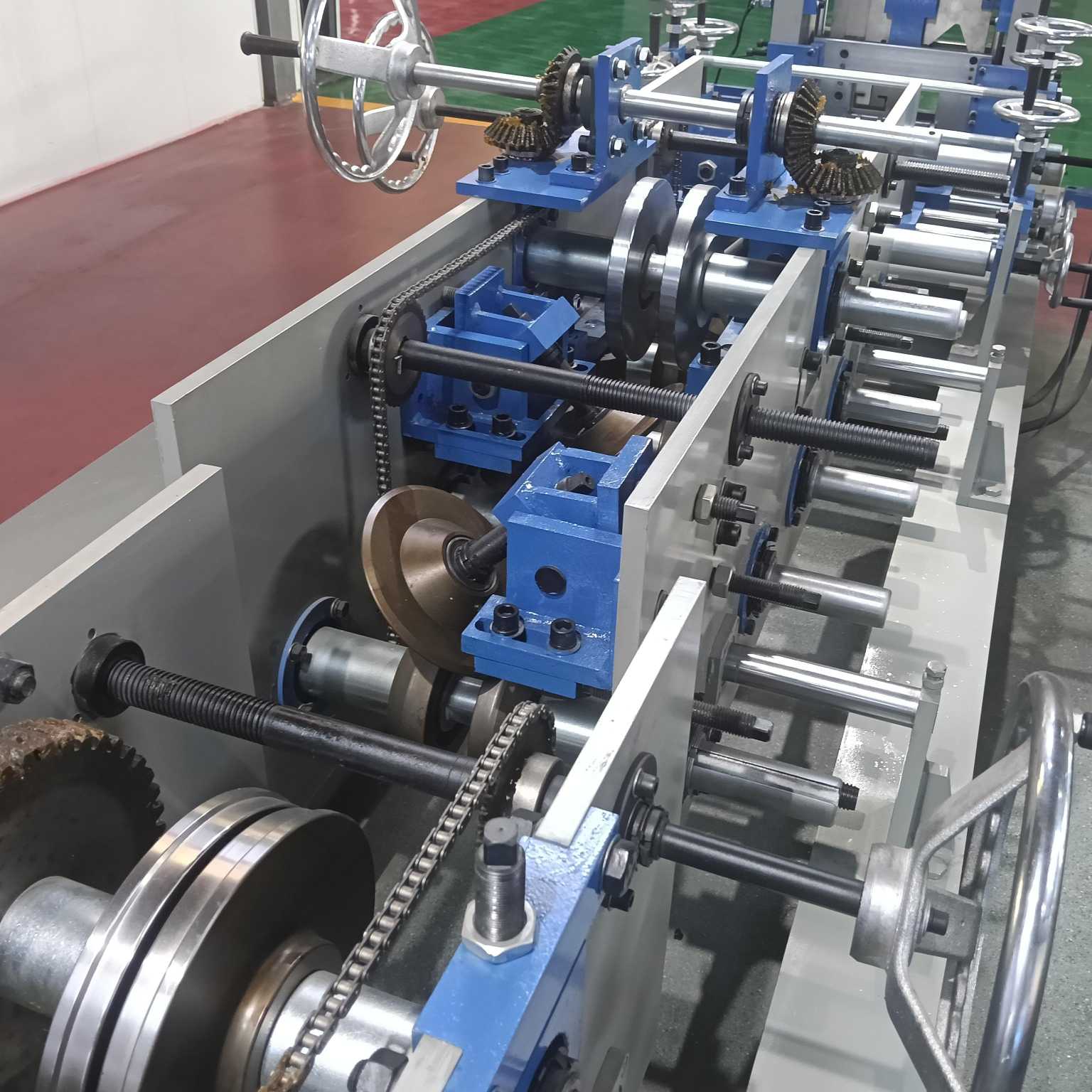

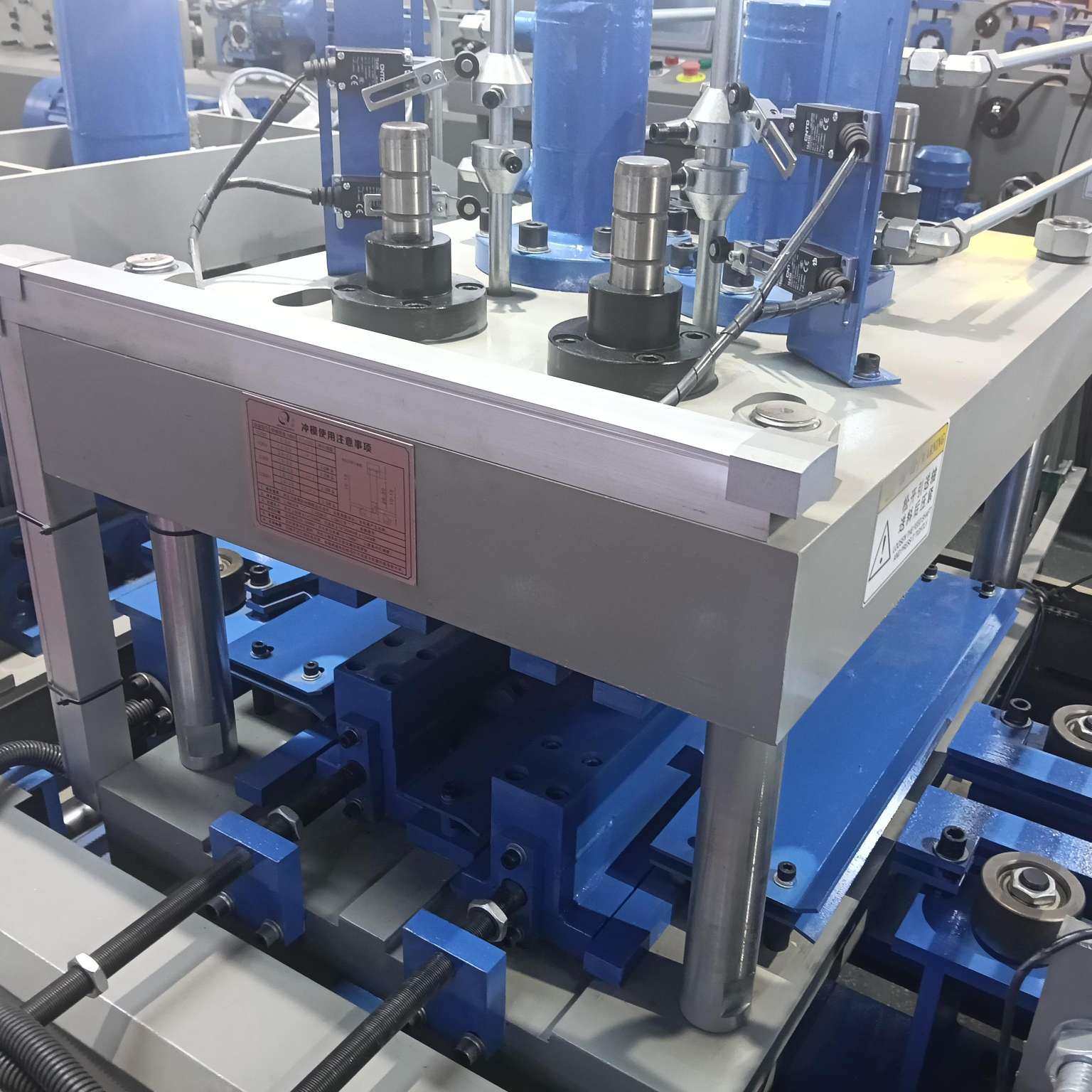

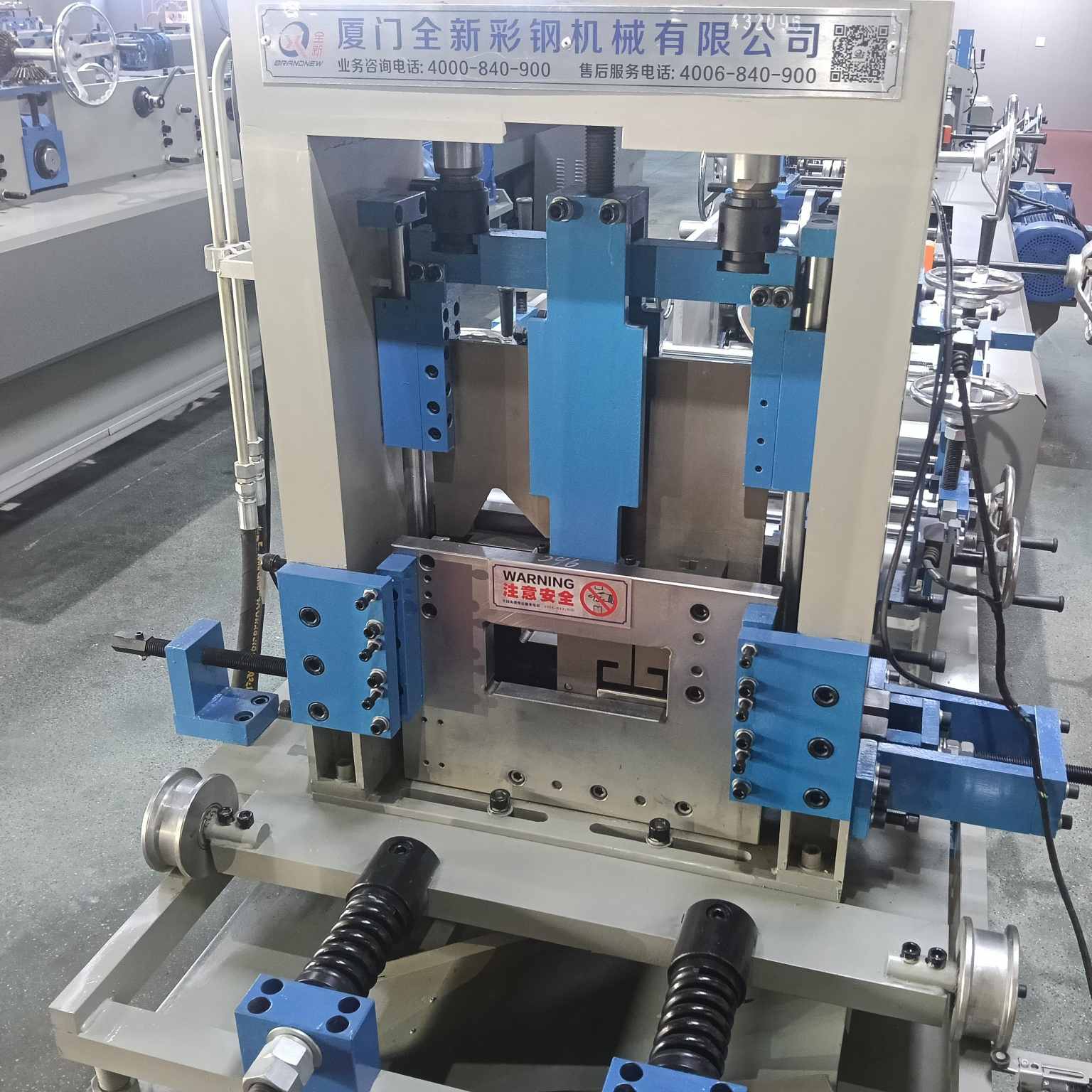

Decoiler → Material Leveling → Servo Feeding → Hydraulic Punching → Multi-Station Roll Forming → PLC Length Setting → Hydraulic Cutting → Finished Product Output

Forming machine arameters
