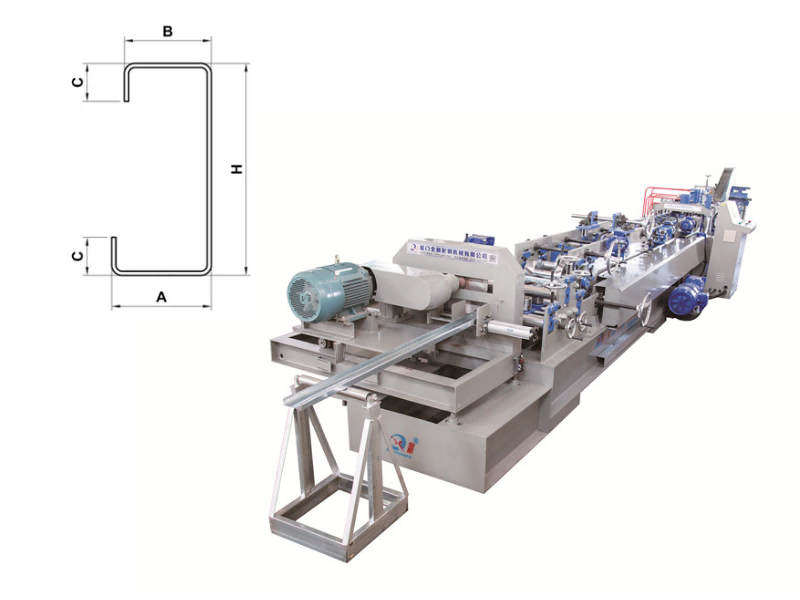

C Purlin Roll Forming Machine

C purlin roll forming machine is designed to meet diverse construction needs. Choose from C, Z, or combined CZ styles to suit your projects perfectly. For optimal performance, select between the standard motor version or the advanced servo motor version. Our machines cater to various material thicknesses—opt for the CZ50-200 or CZ80-300 for standard materials, or upgrade to the CZ100-350 or CZ140-400 for heavier applications. Relating to the control mode, there is computer-controlled type and digital display instruction type. Tailor your choice to your specific requirements and experience unparalleled efficiency and quality in purlin production. Elevate your projects today with our customizable solutions!

Machine Parameters

Below are the parameters for Beenew C50-200 purlin rolling machine with servo motor:

Details

Main components

1.Uncoiler

Type:Mechanical decoiler,or hydraulic decoiler

Load capacity:5T

Coil inner diameter:480-580mm

Expanding type:Manual,or hydraulic

2.Roll forming machine

Flattening station:7 rollers with solid shaft to flatten the steel coil

Roller material:High grade Gcr15 wear-resistant material

Main drive:11kw servo motor

Main shaft:45# steel with heat treatment,polishing and galvanizing

Size adjustment:Continuously adjustable via PLC control

3.Hydraulic punching & universal cutting system

Punching unit:2 sets

Hole type:slot holes or round holes

Universal cutters:one cutter suitable for all C purlin size

Machine control:Automatic with PLC control

Our rollers of purlin forming machine feature flat wheels made from GCr15 bearing steel, renowned for its hardness and wear resistance. The inclined wheels are crafted from Cr12 tool steel, providing exceptional strength and reliability.

Cutting blade of our purlin rolling machine is manufactured from high-quality tool steel and subjected to rigorous heat treatment. This process enhances the blade's durability and sharpness, allowing for clean, precise cuts.

Why choose us?

1.29 years professional manufacturing experience in roll forming machines,more than 1000 sets roll forming machines output annual.

2.An independent design team can provide customized roll forming production solutions.

3.Strict factory inspection,key components are used brand configurations,ensuring stable and reliable quality.

4.One-stop support from scheme design,production manufacturing,installation and commissioning to after-sales service.

5.Direct supply from manufacturer,good price and more guaranteed delivery time.

6.We have several patent certificates.
