Standing Seam Forming Machine

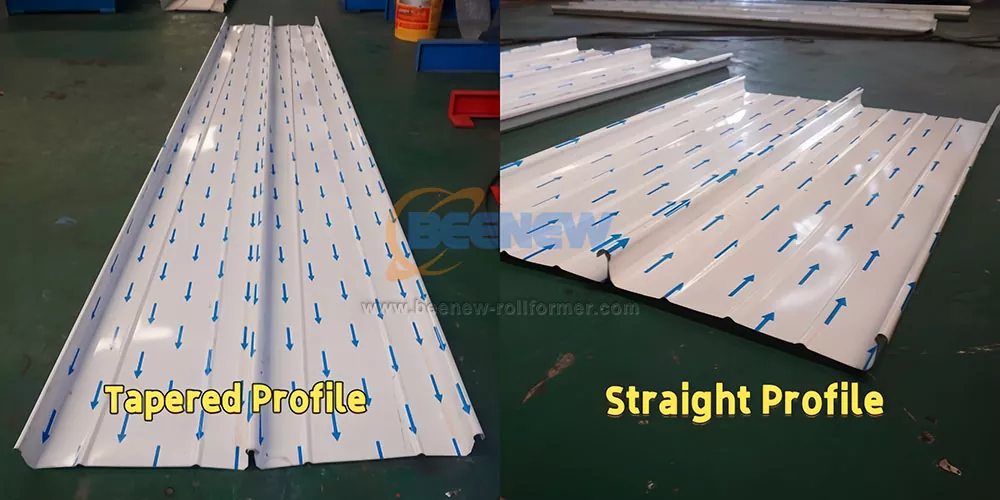

This roofing machine is a cold roll forming machine specifically designed for metal roofing processing. It primarily produces YX65 series standing seam roof sheets and can simultaneously produce four effective widths of 280/400/500/600mm without changing the core mold. It is suitable for the construction of aluminum-magnesium-manganese and color-coated steel standing seam roofs for large public buildings (high-speed rail stations, airports, stadiums, etc.) and is a core piece of equipment for building metal roofing processing.

Production Process

Roll feeding → Uncoiling → Manual pre-cutting to length → Feeding guide → Cold roll forming → Hydraulic post-cutting → Finished product collection. The entire process is automated and requires only 1-2 operators.

Parameters

1. Panel Type and Dimensions

Roof Panel Rib Height: 65mm (YX65 series core identifier)

Effective Production Width: 300/400/500/600mm

Raw Material Feed Width: Approximately 472/575/675/775mm

2. Compatible Raw Materials

Material: Color-coated steel sheet (PPGI), galvanized sheet, aluminum-magnesium-manganese sheet

Thickness: Steel sheet 0.35-0.8mm, aluminum sheet 0.4-1.2mm

Yield Strength: 235-350MPa

3. Forming Performance

Forming Passes: 14 passes

Forming Speed: 8-20m/min

Voltage: 380V/50Hz/3-phase

4. Equipment Specifications

Overall Machine Dimensions: Approximately 5800*1600*1500mm (suitable for 20GP container transport)

Overall Machine Weight: 5.5-7 tons

Motor Power: Main motor 7.5kW + hydraulic motor 2.2kW (dual motor configuration)

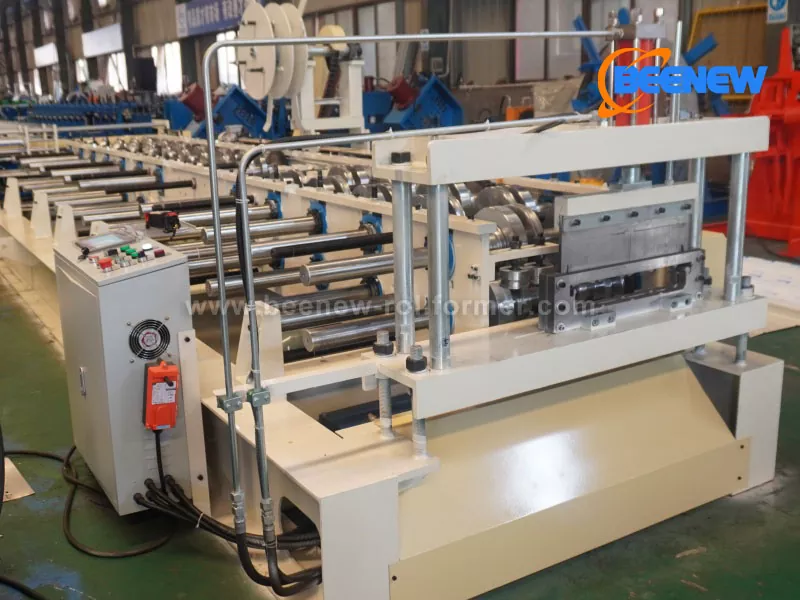

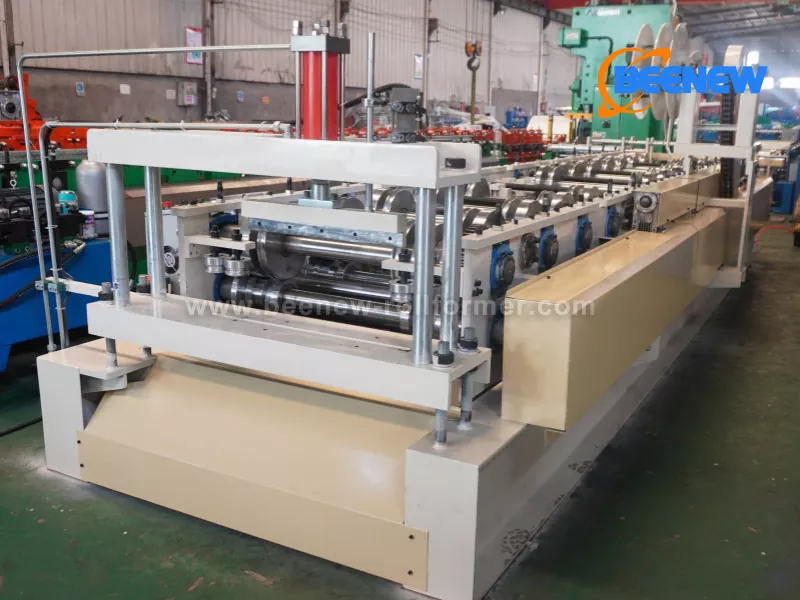

Structure and Configuration: The equipment is an integrated production line, comprising 7 core components, with full PLC automated control:

1. Uncoiler: Manual type, maximum load capacity 3-5 tons, suitable for coil inner diameter 508±30mm;

2. Pre-cutting machine: Linked with PLC, it can pre-calculate the raw material length to reduce material waste;

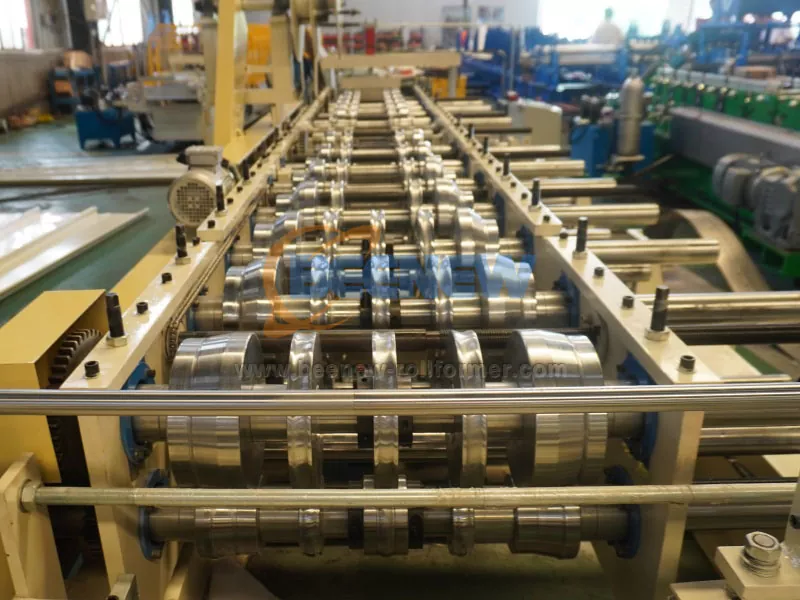

3. Main forming machine: The machine body is welded from H450 steel, the rollers are 40Cr steel with chrome-plated mirror finish, shaft diameter 75-80mm, gear/sprocket drive;

4. Hydraulic post-cutting machine: Cutting blade material Cr12Mov (heat treatment HRC58-62), cutting life exceeding 1 million times, cutting accuracy is guaranteed even when the machine is stopped;

5. PLC control system: With touch screen, it can input production batch, length, and quantity to achieve fully automatic cutting and counting;

6. Discharge rack: 3 sets of non-powered roller racks for convenient finished product conveying;

7. Included tools: 1-2 sets each of manual seam clamps and electric seam clamping machine, suitable for on-site roof installation.

Business and After-Sales Information

1. Delivery Time: Approximately 45 working days;

2. Minimum Order Quantity: 1 unit;

3. Payment Method: TT/L/C;

4. Port of Shipment: Xiamen Port, China;

5. After-Sales Guarantee: 1-year warranty (extendable to 2 years for core components), 24-hour technical support, overseas engineer on-site service available;

6. Certifications: Compliant with CE/ISO/SGS and other international standards.

Applications

Standing seam profiles are commonly used for residential and commercial buildings. They are used on both roofing installation and wall cladding. Simple and generous, beautiful and solid. Used in conjunction with arc bending machines and curving machines, it can be used to meet a variety of shapes.
