Shutter Door Machine

Shutter door machine is used to manufacture the slats or profiles of roll-up shutter doors. These doors are widely used for warehouse, garages, stores and other industrial places.

Send Inquiry

Product Description

Product Parameter

Item	Parameters
Material Thickness	0.5-1.0mm
Driving Motor	4kw
Hydraulic Station Power	2.2kw
Feeding Width	125MM
Curving Motor	2KW Servo Motor
Roller Material	45# steel, hard chrome coated
Shaft Diameter	65mm
Forming Station	14 stations
Cutting Mode	Sawing cutting

Features

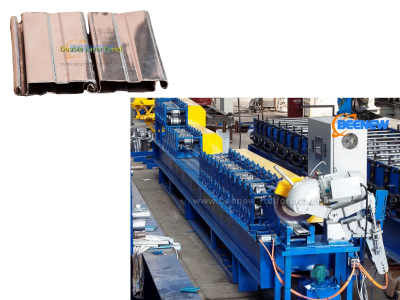

This rolling shutter door machine is designed to produce double layer shutter panels which are more durable and of high security. Having two layers of panels, the middle of the double layer panel may be filled with heat insulation, sound insulation materials, to provide stronger protection and thermal insulation performance;so it is more suitable for the need for heat preservation, sound insulation places, such as warehouses, workshops,

Our shutter door rolling machine can deal with different kinds of materials like galvanized steel, aluminum, or other metals. And we are able to make different profile designs, sizes, and finishes based on the application. The whole machine is of high efficiency and automation. By entering required length and batches into the PLC control system, the machine can then run automatically and do continuous producing.
