IBR Making Machine

The IBR making machine is a very common but popular type of roll forming machine. It is widely used in many countries especially in South Africa. It can be used for both roof and wall covering sheets.

Send Inquiry

Product Description

Product Parameter

Item	Parameters
Material Thickness	0.3-0.8mm
Feeding Width	914mm
Driving Motor	7.5kw
Hydraulic Station Power	3kw
Roller Material	45# steel, heat-treated, hard chrome coated
Shaft Diameter	70mm
Machine Weight	12 Tons

Features

As a very popular metal sheet profile, IBR sheet lookssimply and has deeper waves comparing with ordinary roofsheets. These deep wavesoffer excellent drainage performance and optimal weight load capacity. All forming rollers of the IBR sheet making machine arelathe-finished and hard-chrome plated to ensure surface strength without scratching the material and causing rust.

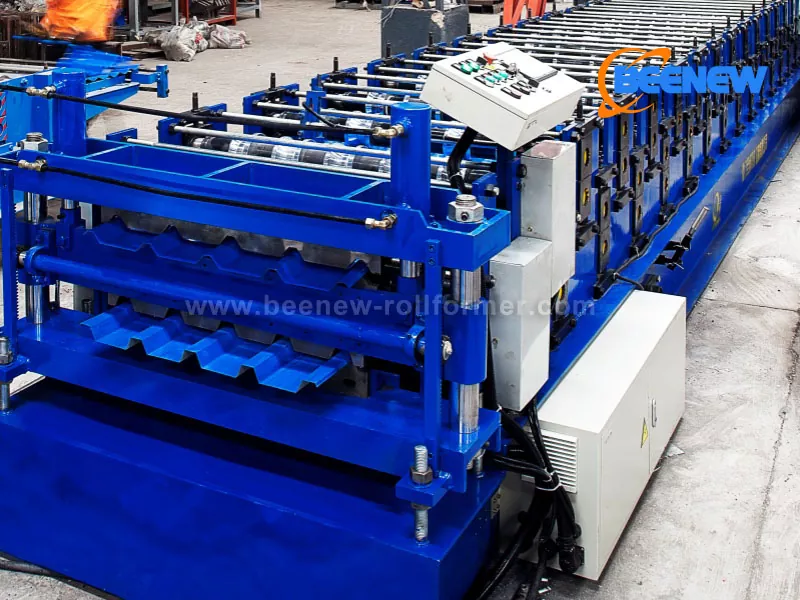

This IBR sheet making machine is designed to a double layer machine.It saves a lot of space and also saves costs to a certain extent.

IBR Sheet Making Machine

Details

1) Profile Drawing:

IBR Making Machine

2）Effect Picture：

IBR Manufacturing Machine

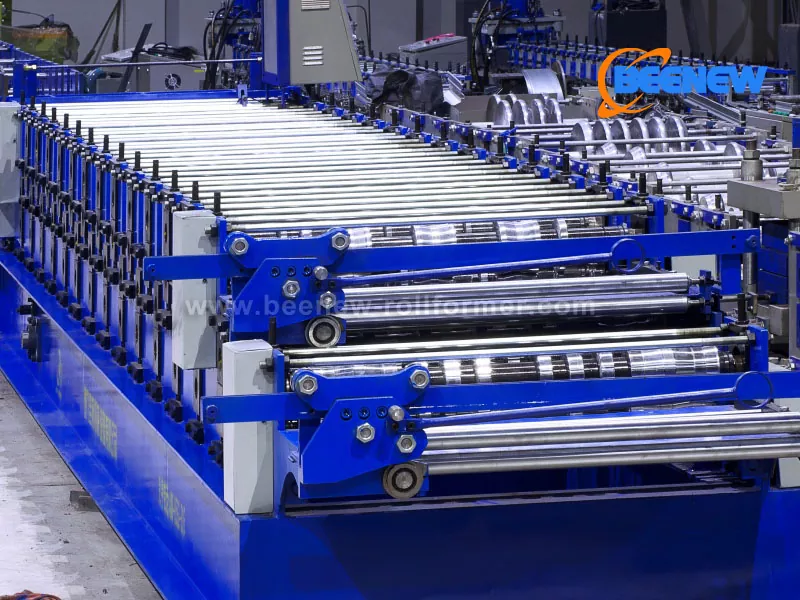

3）The double layer machine can produce two profile but they share the same PLC controller. This PLC controller is designed to be integrated with the machine to save more space and at the same time, can operate easily.

IBR Roof Sheet Making Machine
