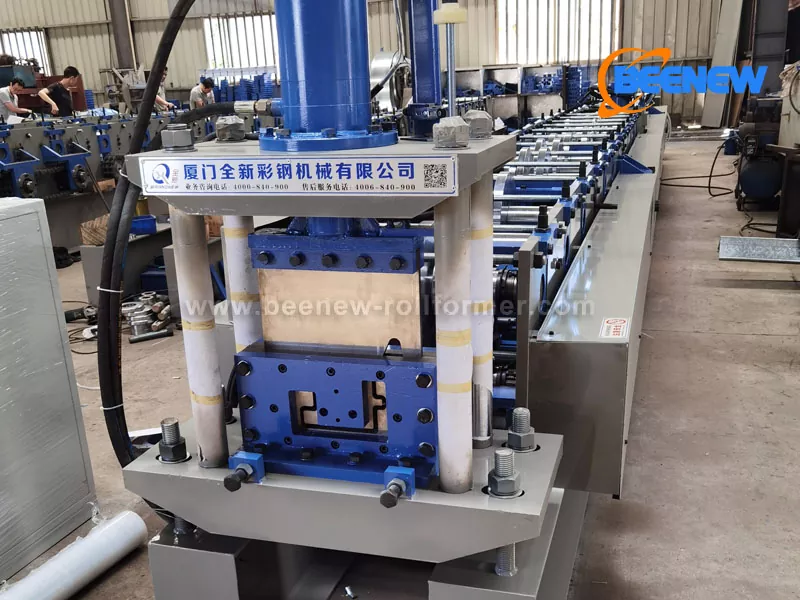

Container House Steel Frame Forming Machine

One set container house steel frame includes support column, bottom beam, top roof beam, wall panel,metal CU frame post and other supporting parts, we Xiamen Beenew machinery can provide full solution for this type of container house steel frame forming machine for your local market.

Product Specification

Main Features

Tradition container bottom frame is as below picture, it is made from 3.5mm Q235 cold rolled coil, and we have improved this frame design for reasonable installation and good waterproof on flange position. So as an experience container house frame roll forming machine manufacturer, we can give you suggestion according to your project needs.

Here is the main parameters of the container house bottom beam roll forming machine:

22 stations roll forming, shaft diameter: 85mm;

Forming rollers are made from GCr15, heat treatment

Driving motor: 22KW*2

Machine frame is made from 400 H beam, side wall thickness: 18mm

With hydraulic pre-punch device

Hydraulic cutting, hydraulic motor: 4KW

Three pieces cutting blades cutting, slug cutting

Machine line speed: approx 12m/min

All our container house frame roll forming machine lines are controlled by PLC system, auto punch, auto cut as touch screen setting length for your project used.

Other container house frame forming machines as below for reference

Top beam roll forming machine

V shape corner post roll forming machine

C purlin roll forming machine for inner bottom frame

Container house used ceiling panel roll forming machine

Steel roof support frame forming machine

Square column roll forming machine

Skin steel roof roll forming machine

One good quality steel frame system should keep its strength, durability and flexibility well, so good precision container house frame roll forming machines are important factors for the business, experienced workers at job site, and fast delivery for all house frames should be combined well. Need any help, Xiamen Beenew can support you base on our rich experience on this series roll forming machines.

Project Application
