What are the Key Advantages of the Metal Roof Making Machine?

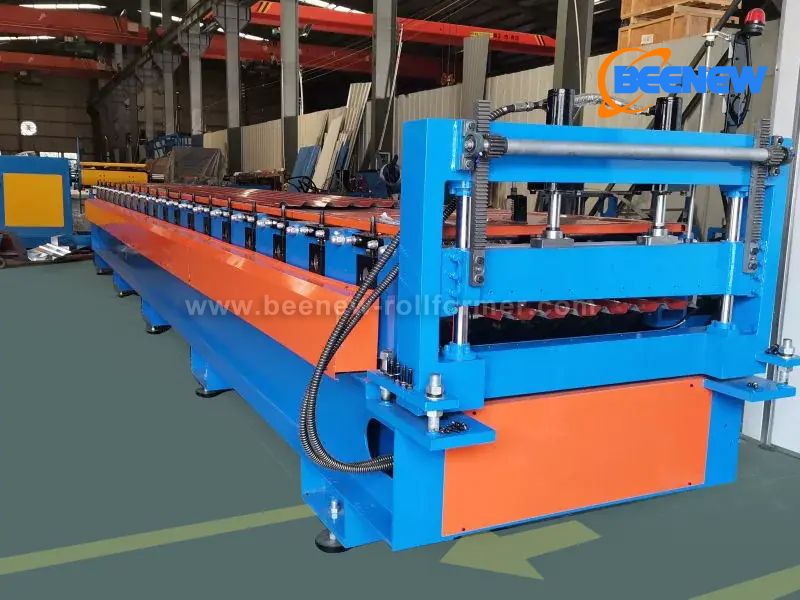

The metal roof making machine is a continuous cold roll forming system consisting of a highly rigid frame and multiple sets of precision rollers. BEENEW utilizes a modular roller assembly design, with each set independently equipped with a radial fine-tuning mechanism. The drive system features a multi-axis synchronous gearbox to eliminate material stretching caused by speed differences. The hydraulic shearing unit is linked in real time to the forming cycle, ensuring burr-free cross-sections. The control center integrates an industrial-grade programmable logic controller, and a touchscreen interface displays production parameters in real time.

Product Advantages

In terms of process, our metal roof making machine utilizes a chrome-plated finish, achieving a surface hardness comparable to tool steel and significantly improving abrasive wear resistance. The roller assembly preload is hydraulically closed-loop controlled to accommodate metal coils with varying yield strengths. BEENEW's equipment has passed dynamic balancing tests, ensuring that frame vibration remains below the safety threshold during high-speed operation.

The production parameter database stores data for hundreds of roof panel types, automatically matching roller gap and feed speed during switching. The fault self-diagnosis system monitors hydraulic pressure fluctuations and bearing temperature rise in real time, providing millisecond-level warnings. The remote maintenance portal allows engineers to modify program logic online, reducing downtime during metal roofing machine installation.

Our products have a wide range of applications. The continuous molding process eliminates the potential for leaks associated with traditional segmented assembly. The high-precision interlocking design of the corrugated ribs enhances the roof's wind-up resistance. In industrial plant applications, extended panels can be formed in one go, reducing the number of on-site joints. Our equipment supports the processing of special anti-corrosion coated panels, and the roller surface treatment prevents coating scratches.

Product Parameter

How to maintain it?

Before starting the machine daily, manually rotate the rollers to check for sticking. Weekly, remove accumulated debris from the metal roof making machine roller nip, using a copper scraper to avoid damaging the coating. Refill high-temperature grease every 500 hours, controlling the amount to a minimal amount that seeps through the overflow hole. Quarterly, inspect the roller shaft for radial runout, and replace the tapered roller bearings if out of tolerance.

How to address pressure abnormalities?

First, check the oil tank level and the filter differential pressure indicator. Test the solenoid valve coil impedance to eliminate electrical faults. If pressure fluctuates, check the accumulator nitrogen precharge pressure. Use a calibrated instrument to adjust the relief valve setting. Perform three bleed cycles after replacing the seals.
